Heosbox CO2

HB2*
Heosbox CO2
Heosbox CO2 Heosbox CO2 Heosbox CO2 Heosbox CO2 Heosbox CO2 Heosbox CO2 Heosbox CO2

  • Obecné charakteristiky

    "Heosbox CO2" units are water-cooled condensing units incorporating the Heos high-efficiency solution for CO2 applications:

    • BLDC variable speed compressors. Permanent magnet brushless motors and "double rotary" construction allow maximum efficiency, a wide modulation range (25-100%), compact design and low noise.
    • DC driver. CAREL drivers for Heos applications feature the highest control precision and reliability.
      The class B firmware guarantees the system additional electronic protection.
    • Electronic expansion valve. Thanks to the stepper motor, Heosbox CO2 provides continuous control of the evaporation temperature to ensure maximum efficiency in all conditions, including through preventive monitoring actions.
    • Heos controller. The controller on one hand provides complete functional management of the showcase (lights, fans, heaters, alarms, etc.), and on the other perfect synchronisation between the variable-speed compressor and electronic valve.
      Complete knowledge of how the unit is operating allows the adoption of advanced control logic and preventive monitoring actions for greater reliability of the entire solution.



    Heosbox CO2 units are designed and optimised for subcritical commercial refrigeration applications, and essentially comprise:

    • a partial refrigeration circuit, to be coupled to an evaporating coil
    • an electrical panel featuring power distribution and a control system.



    The solution fulfils current market and regulatory requirements:

    • reduction of direct emissions through the use of a natural refrigerant
    • reduction of indirect emissions through high efficiency solutions.



    Subcritical design allows:

    • a reduction in installation costs thanks to lower operating pressures and a simplified design of the refrigeration circuit (similar to units with HFCs)
    • greater operating flexibility: medium or low temperature applications in both single evaporator and multi-evaporator configurations
    • synergies to be created with the existing air conditioning system, making it possible to optimise global site efficiency.
  • Plus

    The benefits of Heos technology...

    Continuous system modulation

    Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.

    Energy efficiency

    The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.

    Maximum food preservation quality

    Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.



    …with the advantages of advanced connectivity and dedicated services:

    Remote connectivity to supervisory systems

    Compatibility with supervisory systems: wired connection (via Ethernet or serial) or wireless (WiFi kit).

    Local connectivity to the Heos controller

    Easy connection to the Heos controller, either wired (Fieldbus) or wireless (via a user interface equipped with Bluetooth and/or NFC connectivity).

    Dedicated IOT services

    The 100% CAREL design and Heos technology provide perfect knowledge of the unit’s operation and performance. Dedicated services are available, including remote monitoring, data analysis and advanced algorithms for predictive maintenance.




Dokumentace

Technical

  • 2D/3D drawings
    Kód Popis Jazyk Datum * Verze
    Kód 3D Heosbox CO2 HB200CXX00SE0 Secondary_panel

    Popis 2D-3D drawings Heosbox CO2 HB200CXX00SE0 Secondary_panel

    Jazyk ALL

    Datum 22/06/2022

    Verze R.0

    Kód 3D Heosbox CO2 HB200C1000CE0

    Popis 2D-3D drawings Heosbox CO2 HB200C1000CE0

    Jazyk ALL

    Datum 22/06/2022

    Verze R.0

    Kód 3D Heosbox CO2 HB200C0600CE0

    Popis 2D-3D drawings Heosbox CO2 HB200C0600CE0

    Jazyk ALL

    Datum 22/06/2022

    Verze R.0

    Kód 3D Heosbox CO2 HB200C0400CE0

    Popis 2D-3D drawings Heosbox CO2 HB200C0400CE0

    Jazyk ALL

    Datum 22/06/2022

    Verze R.0

    Kód 3D Heosbox CO2 HB200C0300CE0

    Popis 2D-3D drawings Heosbox CO2 HB200C0300CE0

    Jazyk ALL

    Datum 22/06/2022

    Verze R.0

  • Electrical Schemes
    Kód Popis Jazyk Datum * Verze
    Kód HB200CXX00SE0_El

    Popis Q.E. SECONDARY

    Jazyk ALL

    Datum 07/04/2022

    Verze R0

    Kód HB200C1000CE0_EI

    Popis EP HEOS BOX CE WITH INVERTER PSD2 24A AND POWER BOARD

    Jazyk ALL

    Datum 03/08/2021

    Verze R0

    Kód HB200C0670CE0_El

    Popis EP HEOS BOX CE WITH INVERTER PSD2 18A AND POWER BOARD

    Jazyk ALL

    Datum 02/08/2021

    Verze R0

    Kód HB200C0300CE0_HB200C0450CE0_El

    Popis EP HEOS BOX CE WITH INVERTER PSD2 12A AND POWER BOARD

    Jazyk ALL

    Datum 29/06/2021

    Verze R0

  • Manuály
    Kód Popis Jazyk Datum * Verze
    Kód +0300145EN

    Popis Heosbox controller

    Jazyk ENG

    Datum 06/07/2023

    Verze 1.1

    Kód +0300145IT

    Popis Heosbox controller

    Jazyk ITA

    Datum 06/07/2023

    Verze 1.1

    Kód +0300140EN

    Popis HEOS BOX R744 Assembly instructions, including user and maintenance information CE version

    Jazyk ENG

    Datum 25/05/2022

    Verze 1.0

    Kód +0300140IT

    Popis HEOS BOX R744 Istruzioni per l’assemblaggio, comprensive di informazioni per l’uso e la manutenzione Versione CE

    Jazyk ITA

    Datum 25/05/2022

    Verze 1.0

  • Selection tool
    Kód Popis Jazyk Datum * Verze
    Kód R744 sizing tool

    Popis

    Jazyk ALL

    Datum 14/06/2022

    Verze 1.0


Commercial

  • Brožury
    Kód Popis Jazyk Datum * Verze
    Kód +3000232IT

    Popis Heosbox CO2 Efficienza, sicurezza e sostenibilità per i tuoi banchi refrigerati

    Jazyk ITA

    Datum 31/03/2022

    Verze 1.0

    Kód +3000232EN

    Popis Heosbox CO2 Efficiency, safety and sustainability for your refrigerated showcases

    Jazyk ENG

    Datum 31/03/2022

    Verze 1.0


Images

  • High resolution images
    Kód Popis Jazyk Datum * Verze
    Kód PH21LUP303-heosbox-CO2

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

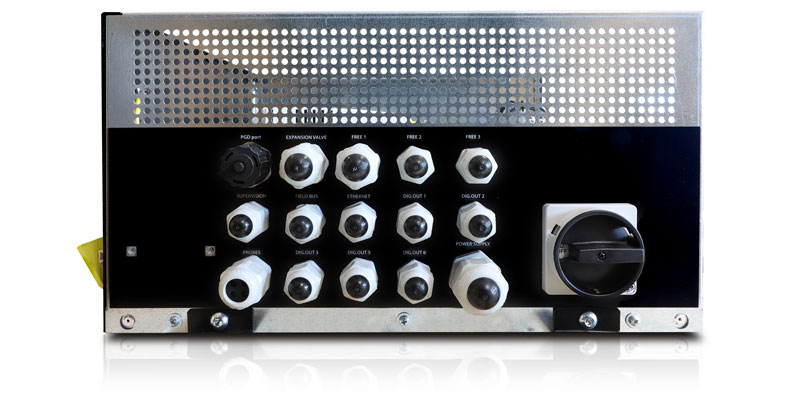

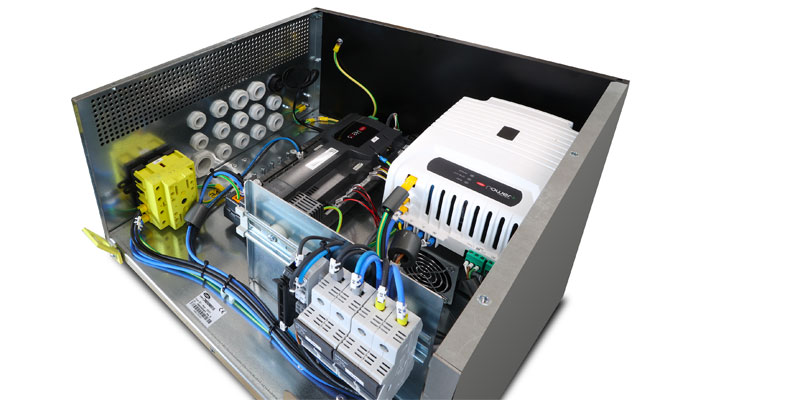

    Kód PH21LUP30C-heosbox-CO2-electrical

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

    Kód PH21LUP30E-heosbox-CO2-electrical

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

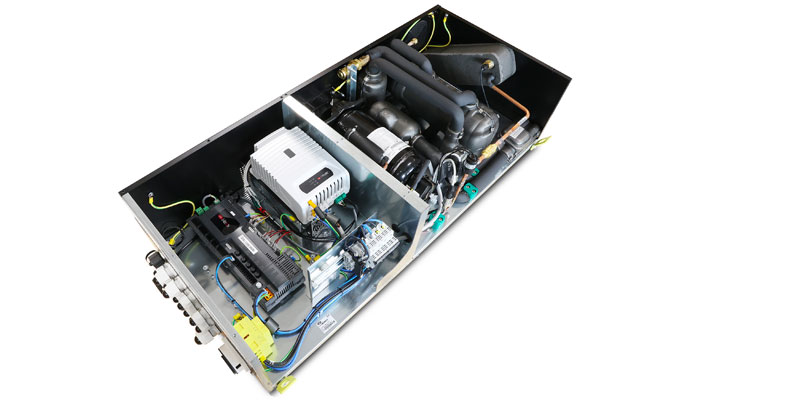

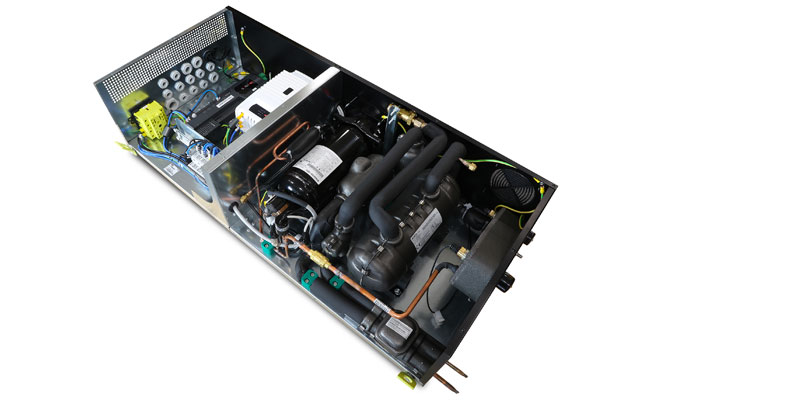

    Kód PH21LUP30F-heosbox-CO2-open

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

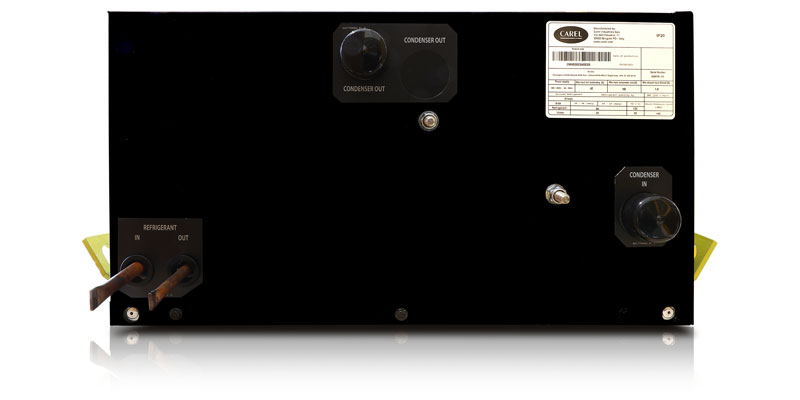

    Kód PH21LUP30D-heosbox-CO2-mechanical

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

    Kód PH21LUP304-heosbox-CO2-open

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

    Kód PH21LUP307-heosbox-CO2-mechanical

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

    Kód PH21LUP305-heosbox-CO2-open

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0

    Kód PH21LUP306-heosbox-CO2-electrical

    Popis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail

    Jazyk ALL

    Datum 06/06/2022

    Verze R.0
