Lighting management - pChrono
Obecné charakteristiky
The CAREL solution for control and monitoring of light fixtures and non-food appliances offers a complete range of devices designed to significantly reduce energy waste, consequently increasing cost savings for the end user. The solution provides a pChrono controller for managing light fixtures and non-food devices, i.e. generic loads such as air extractors, air blades, vending machines, etc. Other devices supplied, such as wireless power sockets, add flexibility to the system, increasing its usability and expanding the field of application.

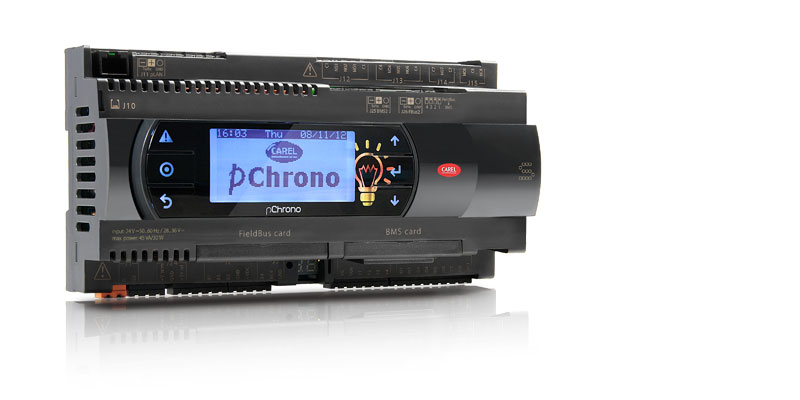

pChrono is the controller for managing light fixtures and generic loads in general. Other functions available to increase site efficiency include:
- pumping units
- wireless management of 10 Ampere power sockets
- wireless reading of temperature / humidity / brightness probes
Light fixture management also includes control of the lights via brightness sensors, either wireless or wired; the light fixtures will be switched on and off based on the times and set points that can be configured by the user, even via remote.
Load scheduling is supported by a precise scheduler that includes up to 15 exceptions to control the behaviour of the loads even when the site is closed. Using the wireless plug modules (10 A sockets) with integrated energy meter function, the system can read the power consumption of single-phase loads and enable them via remote.
Flexibility and modularity in the field are the primary features of the pChrono system, which can manage up to 60 loads.
-
Plus
- Suitable for management of light fixtures and generic loads, from convenience stores to large supermarkets.
- Flexible and modular, also thanks to wireless network support on the standard Carel rTM system.
- Full control of the system, with the possibility of optimising the on/off times for outdoor lighting based on sunrise and sunset information provided by the ECO-HVAC (Geo-Lighting) plugin.
Dokumentace
Technická
-
Quick Guide
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +040000182 Popis pChrono Solution pour gestion des lumières et des charges électriques Jazyk FRE Datum 23/09/2014 Verze 1.4 Kód +040000184 Popis pChrono: Solución para la gestión de los puntos de luz y de dispositivos no-food Jazyk SPA Datum 23/09/2014 Verze 1.4 Kód +040000185 Popis pChrono Solução para a gestão dos pontos de luz e de dispositivos no-food Jazyk POR Datum 23/09/2014 Verze 1.4 Kód +040000181 Popis pChrono-User manual: Solution for the management of lights and non-food devices Jazyk ENG Datum 23/09/2014 Verze 1.4 Kód +040000180 Popis pChrono- Manuale d’uso: Soluzione per la gestione dei punti luce e di dispositivi no-food Jazyk ITA Datum 23/09/2014 Verze 1.4
Obchodní
-
Brožury
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000101EN Popis Solutions for Convenience Stores - Optimisation and complete management of small footprint stores Jazyk ENG Datum 18/02/2016 Verze 1.1 Kód +3000101DE Popis Lösung für Convenience Stores - Optimierung und Management von Kleinanlagen Jazyk GER Datum 18/02/2016 Verze 1.1 Kód +3000101ES Popis Solución para Convenience Stores - Optimización y gestión completa para instalaciones de pequeñas dimensiones Jazyk SPA Datum 18/02/2016 Verze 1.1 Kód +3000101FR Popis Solution pour Supérettes - Optimisation et gestion complète pour installations de petites dimensions Jazyk FRE Datum 18/02/2016 Verze 1.1 Kód +3000101IT Popis Soluzione per Convenience Store - Ottimizzazione e gestione completa per impianti di piccole dimensioni Jazyk ITA Datum 18/02/2016 Verze 1.1 Kód +3000101PT Popis Soluções para Lojas de Conveniência - Otimização e gestão completa de lojas de pequenas dimensões Jazyk POR Datum 18/02/2016 Verze 1.1 Kód +3000100EN Popis Energy saving and complete store management Jazyk ENG Datum 18/06/2015 Verze 1.0 Kód +3000100IT Popis Risparmio energetico e gestione completa del punto vendita Jazyk ITA Datum 18/05/2015 Verze 1.0 Kód +3000082EN Popis Exhibition @ a glance Jazyk ENG Datum 09/10/2014 Verze 2.0 Kód +3000089IT Popis pChrono: La soluzione per la gestione dei punti luce Jazyk ITA Datum 30/09/2014 Verze 1.0 Kód +3000089EN Popis pChrono: the lighting management solution Jazyk ENG Datum 30/09/2014 Verze 1.0 Kód +3000089FR Popis pChrono: La solution pour la gestion des points lumineux Jazyk FRE Datum 30/09/2014 Verze 1.0 Kód +3000089ES Popis pChrono: La solución para la gestión de los puntos de luz Jazyk SPA Datum 30/09/2014 Verze 1.0 Kód +3000089PT Popis pChrono: a solução para o gerenciamento dos pontos de luz Jazyk POR Datum 30/09/2014 Verze 1.0 Kód +3000049DE Popis pChrono: Der ideale Partner für das Lichtmanagement und die Non-Food-Gerätesteuerung Jazyk GER Datum 01/10/2012 Verze 1.0 Kód +3000049EN Popis pChrono: The ideal partner for managing lighting and non-food devices Jazyk ENG Datum 01/10/2012 Verze 1.0 Kód +3000049ES Popis pChrono: El partner ideal en la gestión de los puntos de luz y de dispositivos no-food Jazyk SPA Datum 01/10/2012 Verze 1.0 Kód +3000049FR Popis pChrono: Le partenaire idéal pour la gestion de l’éclairage et des dispositifs NO FOOD (qui ne touchent pas à la régulation du froid) Jazyk FRE Datum 01/10/2012 Verze 1.0 Kód +3000049IT Popis pChrono: Il partner ideale nella gestione dei punti luce e di dispositivi no-food Jazyk ITA Datum 01/10/2012 Verze 1.0 Kód +3000049PT Popis pChrono: O parceiro ideal no gerenciamento da iluminação e dos dispositivos de tipo no-food. Jazyk POR Datum 01/10/2012 Verze 1.0 Kód +3000049RU Popis pChrono Jazyk RUS Datum 01/10/2012 Verze 1.0 Kód +3000049ZH Popis pChrono: 照明与非食品设备管理的最佳 产品! Jazyk CHI Datum 01/10/2012 Verze 1.0
Images
-
High resolution images
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód pChrono_schermata_avvio_300dpi Popis CAREL Lighting management - pChrono controller Jazyk ALL Datum 10/03/2022 Verze R.0 Kód pChrono-small_schermata avvio_300dpi Popis CAREL Lighting management - pChrono controller Jazyk ALL Datum 10/03/2022 Verze R.0
