µAria

Obecné charakteristiky

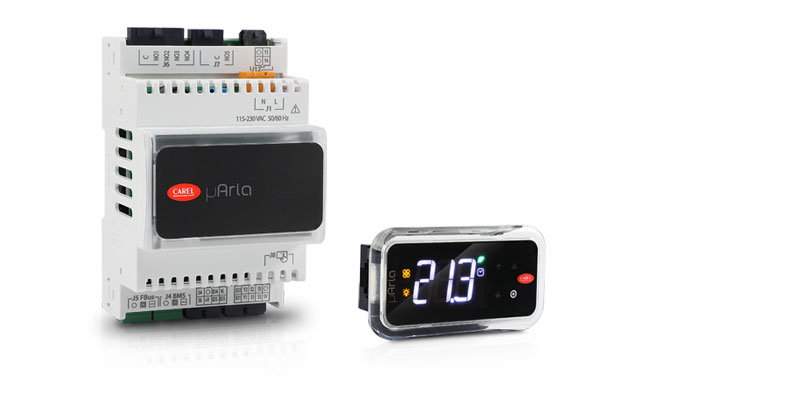

µAria is the ready-to-use solution for managing residential air handling units with heat recovery.
µAria is a parametric controller, designed to reduce time and costs from the design phase to the start-up phase. Its flexibility allows it to handle the entry level HRV compact machine range up to about 1000 m3/h.
CAREL's knowledge in the field of air handling units ensures intelligent control logic, ensuring optimal operation of all devices.
Multiple types of probes and sensors (temperature, humidity, CO2, VOC, etc.) can be managed, which measure the desired values and use them for the defined adjustment modes. This ensures a high level of comfort in the rooms served by the unit by controlling air quality and air exchange, while optimising energy performance.
µAria offers an advanced user experience thanks to its standard Bluetooth and NFC wireless connectivity, in combination with the APPLICA App.
APPLICA, which can be downloaded free of charge to smartphones from Google Play for Android or App store for iOs, makes it possible to fully configure the unit in a few simple steps thanks to the pre-loaded synoptics and configurations.
Combined with the th-Tune terminal, the user can easily adjust temperature and humidity to achieve the desired environmental conditions.-
Plus
Flexibility
A single application designed to adapt to different unit layouts.
Plug&play
Easy configuration and start-up.
- Pre-loaded configurations with customisation possibilities.
- Manual configuration of all unit components.
Connectivity
- Wireless NFC and Bluetooth connection via CAREL App “APPLICA” for fast commissioning, diagnostics and maintenance of the unit with simple interface and synoptics.
- Easy integration of both field components and higher-level supervisory or BMS systems, thanks to integrated Modbus RTU RS485 serial communication.
Usability
- Seven-segment, single-line LED display for improved usability of information.
- Dedicated interface for quick access to variables and configurations, for use on Android and iOs smartphones.
Air quality and hygiene
- Room air quality control on CO2 setpoint and VoC.
- Humidity control in the indoor environment.
Energy efficiency
- Intelligent device management based on minimum energy consumption.
- Free cooling and Free heating.
- Heat recovery.
Dokumentace
Technical
-
Manuály
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +0300105IT Popis μAria - Controllo per unità di ventilazione con recuperatore di calore Jazyk ITA Datum 02/05/2023 Verze 1.2 Kód +0300105EN Popis μAria - Controller for ventilation units with heat recovery Jazyk ENG Datum 02/05/2023 Verze 1.2 -
Technické listy
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +0500143IE Popis μARIA product technical leaflet - Controllo elettronico per unità di trattamento aria e ventilazione / Electronic control for air handling and ventilation unit Jazyk ENG ITA Datum 11/11/2022 Verze 1.6
Commercial
-
Brožury
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000219IT Popis µAria - Controllo per unità di ventilazione con recuperatore di calore Jazyk ITA Datum 23/03/2023 Verze 1.0 Kód +3000219EN Popis µAria - Controller for ventilation units with heat recovery Jazyk ENG Datum 23/03/2023 Verze 1.0 Kód +3000219ES Popis µAria - Control para unidades de ventilación con recuperador de calor Jazyk SPA Datum 23/03/2023 Verze 1.0
Images
-
High resolution images
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód PH22LMA301-µAria-display Popis CAREL µAria - Air Handling and Ventilation - HVAC control Jazyk ALL Datum 30/09/2022 Verze R.0 Kód PH22LMA305-µAria-din-white Popis CAREL µAria - Air Handling and Ventilation - HVAC control Jazyk ALL Datum 30/09/2022 Verze R.0
