boss one

“PCOG***WE0 / PCOD***WE0”
boss one
  • Obecné charakteristiky

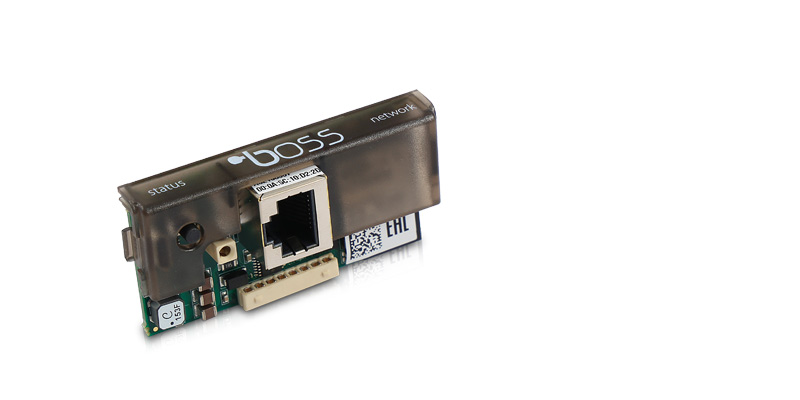

    boss one has the same size and shape as pCOWeb SE, in order to ensure compatibility with all CAREL programmable controllers that featured the BMS card option. The software, on the other hand, differs substantially from pCOWeb, with the introduction of numerous features that cover the same applications yet with much high levels of IT security, usability and flexibility. All exploiting the experience and reliability inherited from the boss range, which the boss one internal logic and user interface are based on.

    boss one is available in two SW versions, called “gateway” and “supervisor”: both can manage a single unit, but differ in terms of the type of application they refer to. The “gateway” version has been created to mainly allow integration of the unit into a local BMS that communicates via Modbus, BACnet and SNMP protocols. The “supervisor” version, on the other hand, is intended for applications that, in addition to the field protocols, require supervisory features, such as managing log files, sending emails or instant messages for alarms, and communicating with the outside world (Internet) to CAREL cloud systems or third-party systems via XML or MQTT protocol.


  • Plus

    Security

    • Access security through user and profile management, centralised with LDAP systems where necessary, password and password expiry security control and blocking of users in the event of multiple incorrect password entry attempts.
    • Secure data transmission by management of encrypted protocols for browsing the web, sending emails and exchanging data with third-party systems.

    Flexibility

    • Flexibility in configuring the protocols through a web interface that can be used to set the index and property for each individual variable
    • Flexibility in user management, through profiling to enable or prevent individual users or groups from accessing the various sections of the software application.

    Smart user interface

    • Easy troubleshooting in the field through an intuitive user interface that can be accessed from mobile devices.
    • Easily customised user interface using the integrated features on the web pages to changed images/logos and through the possibility to create maps with the c.web tool.







Dokumentace

Technical

  • Technické listy
    Kód Popis Jazyk Datum * Verze
    Kód +050003246

    Popis boss one Istruzioni di montaggio / Assembly procedure

    Jazyk ENG  ITA

    Datum 19/11/2019

    Verze 1.0

  • Manuály
    Kód Popis Jazyk Datum * Verze
    Kód +0300088DE

    Popis boss: Lokale Überwachungslösung für mittelgroße und große Anlagen

    Jazyk GER

    Datum 21/01/2019

    Verze 1.3

    Kód +0300088EN

    Popis boss: Local supervisor for medium and large systems

    Jazyk ENG

    Datum 21/01/2019

    Verze 1.3

    Kód +0300088ES

    Popis boss: Supervisor local para sistemas de tamaño medio y grande

    Jazyk SPA

    Datum 21/01/2019

    Verze 1.3

    Kód +0300088FR

    Popis boss: Superviseur local pour les systèmes de taille moyenne et grande

    Jazyk FRE

    Datum 21/01/2019

    Verze 1.3

    Kód +0300088IT

    Popis boss: Supervisore locale per sistemi di medie e grandi dimensioni

    Jazyk ITA

    Datum 21/01/2019

    Verze 1.3


Commercial

  • Brožury
    Kód Popis Jazyk Datum * Verze
    Kód +3000228EN

    Popis boss one - Connectivity, security and flexibility for HVAC/R units

    Jazyk ENG

    Datum 20/10/2021

    Verze 1.0

    Kód +3000228IT

    Popis boss one - Connettività, sicurezza e flessibilità per unità HVAC/R

    Jazyk ITA

    Datum 20/10/2021

    Verze 1.0
