Cloudgate
Obecné charakteristiky

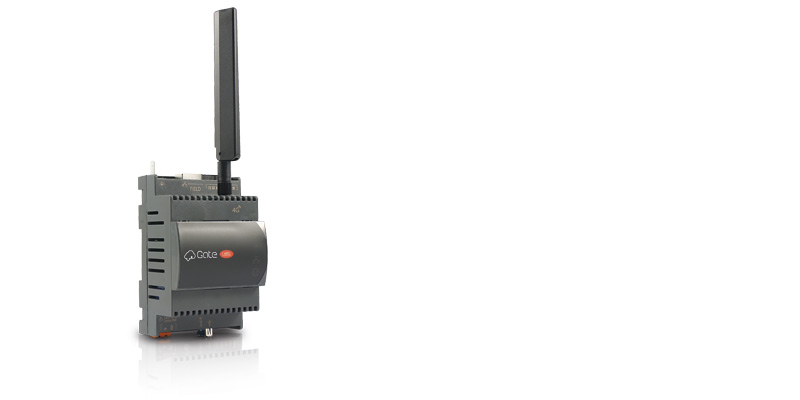

CloudGate is CAREL’s new family of IoT gateways to enable monitoring and tERA platform services for HVAC/R systems with up to 10 units.
Compact, standard installation inside an electrical panel and a local LED interface with immediate indication of communication status make Cloudgate easy to install in the field, without the need for experts in connectivity devices.
Cloudgate is available in four different models, depending on the connectivity available for the communication with the tERA service. These options make it possible to use Cloudgate and consequently the remote control features offered by tERA services in a large number of places and geographic areas.
The web pages accessible via the Cloudgate Ethernet port provide access to system information and advanced network settings, as well as the possibility to carry out advanced diagnostics on the gateway’s operating status locally.
-
Plus
Compact product
Developed in a 4 DIN module format with connection via plug-in terminals, used to install the gateway inside the electrical panel quickly and occupying as little space as possible.
Interface
Interface with eight front LEDs showing gateway operating status and radio signal strength, so as to understand the gateway’s communication status without requiring additional external instruments.
Plug&play installation
Without the need to contact the network infrastructure manager in the building where it is installed, both in the mobile versions (2G/4G), which come with an already-activated built-in Internet connection, and the WiFi version, featuring the WPS function to connect to the building’s network without needing to know the building’s router configuration.
Security
Data and connection security via a VPN (Virtual Private Network) on the models that communicate via the mobile network, and the HTTPS protocol for the Ethernet and Wi-Fi models.
Dokumentace
Technická
-
Technické listy
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +0500150IE Popis CloudGate: Istruzioni di montaggio / Assembly procedure Jazyk ENG ITA Datum 24/07/2023 Verze 1.4 Kód +0500150SP Popis CloudGate: Instruções de montagem / Assembly procedure Jazyk POR SPA Datum 24/07/2023 Verze 1.4 Kód +0500150TR Popis CloudGate: Montaj prosedürü / Assembly procedure Jazyk ENG TUR Datum 24/07/2023 Verze 1.4 Kód +0500150RU Popis CloudGate: Инструкции по монтажу / Assembly procedure Jazyk ENG RUS Datum 24/07/2023 Verze 1.4 Kód +0500150FD Popis CloudGate: Instructions de montage / Montageanleitung Jazyk FRE GER Datum 24/07/2023 Verze 1.4 Kód +0500150EZ Popis 云网关：组装程序 / CloudGate: Assembly procedure Jazyk CHI ENG Datum 07/06/2022 Verze 1.3 Kód +0500151ML Popis Cloudgate Electrical panel assembly instruction Jazyk ENG Datum 28/04/2021 Verze 1.0
Obchodní
-
Brožury
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000224FR Popis Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R Jazyk FRE Datum 15/12/2023 Verze 2.0 -
Other related documentation
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000224EN Popis Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems Jazyk ENG Datum 13/03/2024 Verze 2.1 Kód +3000224IT Popis Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R Jazyk ITA Datum 13/03/2024 Verze 2.1 Kód +800004030 Popis Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Jazyk ITA Datum 05/04/2023 Verze 1.2 Kód +800004031 Popis Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving Jazyk ENG Datum 05/04/2023 Verze 1.2 Kód +800004036 Popis Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach Jazyk POL Datum 05/04/2023 Verze 1.2
Images
-
High resolution images
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód PH21LGT302-cloud-gate-control-panel-open Popis CAREL cloudgate control panel open - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 01/06/2022 Verze R.0 Kód PH21LGT301-cloud-gate-control-panel Popis CAREL cloudgate control panel - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 01/06/2022 Verze R.0 Kód PH19LGT304-cloud-gate-wifi Popis CAREL cloudgate wifi - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 01/06/2022 Verze R.0 Kód PH19LGT305-cloud-gate Popis CAREL cloudgate - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 01/06/2022 Verze R.0 Kód PH19LGT301-cloud-gate Popis CAREL cloudgate 2G - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 01/06/2022 Verze R.0 Kód PH19LGT303-cloud-gate-4G Popis CAREL cloudgate - Gateway IoT - Remote management and monitoring system Jazyk ALL Datum 11/03/2022 Verze R.0
