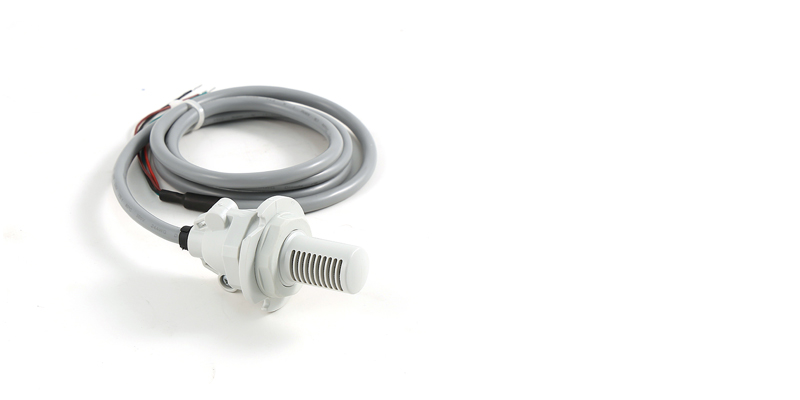

T and H sensors - compact

DPR*
T and H sensors - compact

  • Obecné charakteristiky

    The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:

    • Air handling units;
    • Air-to-air heat recovery units;
    • CRAC units (Computer room air conditioning units), both perimeter and In-row;

    It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
    The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
    Available with 1 m and 3 m long cables.



Dokumentace

Technická

  • 2D/3D drawings
    * Entries are ordered by date
    Kód Popis Jazyk Datum * Verze
    Kód 2d-3d Compact temperature and humidity sensor

    		 Popis 2D-3D drawings

    		 Jazyk ALL

    		 Datum 08/03/2021

    		 Verze R0

  • Technické listy
    * Entries are ordered by date
    Kód Popis Jazyk Datum * Verze
    Kód +050000585

    		 Popis Sensore compatto temperatura e umidità / Compact temperature and humidity sensor

    		 Jazyk ENG  ITA

    		 Datum 21/07/2016

    		 Verze 1.2


Obchodní

  • Other related documentation
    * Entries are ordered by date
    Kód Popis Jazyk Datum * Verze
    Kód +800004030

    		 Popis Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    		 Jazyk ITA

    		 Datum 05/04/2023

    		 Verze 1.2

    Kód +800004036

    		 Popis Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    		 Jazyk POL

    		 Datum 05/04/2023

    		 Verze 1.2
