humiSonic ventilation



Obecné charakteristiky
humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems, offering a high energy efficiency alternative to steam humidification.
Energy consumption per kg of evaporated water is in fact 90% lower than with steam!
Installed directly in the air flow, humiSonic can atomise water into very small droplets (5 µm on average), which are instantly absorbed.
The new generation humiSonic embodies all the attention that CAREL has always paid to the hygiene of its humidification solutions. All components in contact with the water are made from stainless steel, and not water is left to stagnate in the main body at the end of the humidification cycle. In addition, the electronic controller manages periodical washing cycles when the system is not running.
These hygiene features, together with the very high precision that humiSonic can achieve (±1% around the relative humidity set point), make it an ideal solution even for more critical and delicate applications, such as cleanrooms.

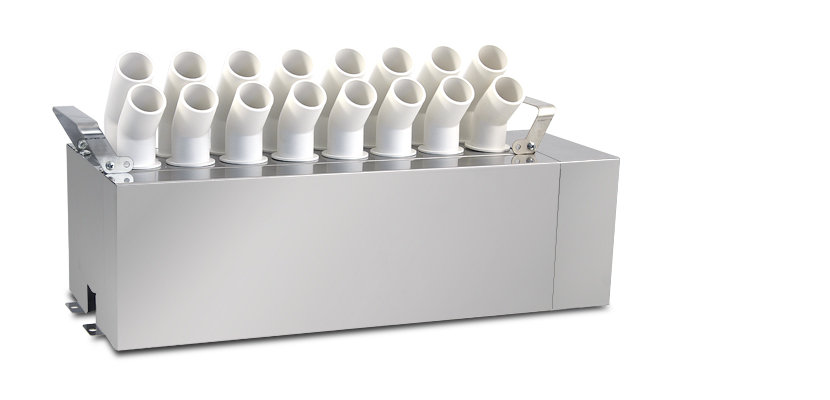

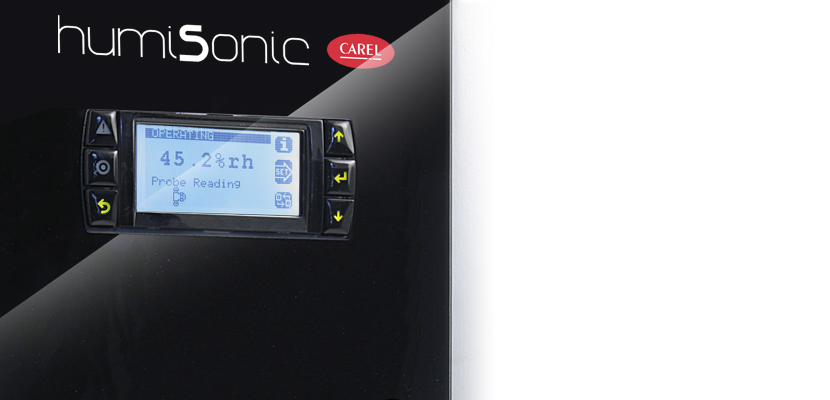

humiSonic for air handling units comprises two elements that make it a powerful and complete solution: the main body (containing the piezoelectric transducers) and the electrical power supply and control panel.
-
Plus
Zvlhčovač humiSonic for ducts (pro potrubí) využívá všech výhod ultrazvukové technologie, a navíc dalších nových vylepšení vyvinutých společností CAREL:
- úspory energie: pouze 10 % spotřeby napájení parních zvlhčovačů;
- spolehlivost: je zaručeno 10 000 hodin nepřerušovaného provozu;
- přesnost: regulace relativní vlhkosti v rozsahu ±1% od nastaveného bodu;
- účinnost absorpce: kapičky o velikosti 5 µm se odpařují okamžitě;
- kompletní řešení: elektrický a ovládací panel společně, vše, co zvlhčovač humiSonic for ducts vyžaduje pro spuštění provozu;
- hygiena: díly z nerezové oceli, žádná recirkulace vody a pravidelné cykly vymývání.
Dokumentace
Technical
-
BIM files
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód BIM files humiSonic ventilation Popis Jazyk ALL Datum 11/03/2020 Verze R0 -
Manuály
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +0300063ES Popis HUMISONIC Humidificadores por ultrasonidos versión ventilación - conducto Jazyk SPA Datum 20/03/2018 Verze 1.2 Kód +0300063RU Popis HUMISONIC Ультразвуковые увлажнители для воздуховодов (канальные) Jazyk RUS Datum 20/03/2018 Verze 1.2 Kód +0300063PT Popis Umidificadores de ultrassons versão ventilation - duto Jazyk POR Datum 20/03/2018 Verze 1.2 Kód +0300063DE Popis Ultraschallvernebler Version für Luftbehandlungsgeräte - Luftkanäle Jazyk GER Datum 20/03/2018 Verze 1.2 Kód +0300063SV Popis Ultraljudsbefuktare version ventilation – kanal Jazyk SWE Datum 20/03/2018 Verze 1.2 Kód +0300063FR Popis Ultrasonic humidifiers version ventilation - conduite Jazyk FRE Datum 20/03/2018 Verze 1.2 Kód +0300063EN Popis Ultrasonic humidiers ventilation - duct version Jazyk ENG Datum 20/03/2018 Verze 1.2 Kód +0300063IT Popis Umidificatori a ultrasuoni versione ventilation - condotta Jazyk ITA Datum 20/03/2018 Verze 1.2
Commercial
-
Brožury
* Entries are ordered by date
Kód Popis Jazyk Datum * Verze Kód +3000103ES Popis humiSonic Humidificadores adiabáticos por ultrasonidos Jazyk SPA Datum 31/10/2019 Verze 2.0 Kód +3000103DE Popis humiSonic Adiabatische Ultraschallvernebler Jazyk GER Datum 31/10/2019 Verze 2.0 Kód +3000103FR Popis humiSonic Humidificateurs adiabatiques à ultrasons Jazyk FRE Datum 31/10/2019 Verze 2.0 Kód +3000103EN Popis humiSonic Adiabatic ultrasonic humidifiers Jazyk ENG Datum 31/10/2019 Verze 2.0 Kód +3000103IT Popis humiSonic: Umidificatori adiabatici a ultrasuoni Jazyk ITA Datum 31/10/2019 Verze 2.0 Kód +3000176EN Popis On show at Chillventa 2018 Jazyk ENG Datum 01/10/2018 Verze 1.0 Kód +3000106EN_chillventa Popis On Show - Chillventa 2016 Jazyk ENG Datum 08/10/2016 Verze 2.0 Kód +3000103ZH Popis humiSonic 绝热式超声波加湿器 Jazyk CHI Datum 01/11/2015 Verze 1.0
