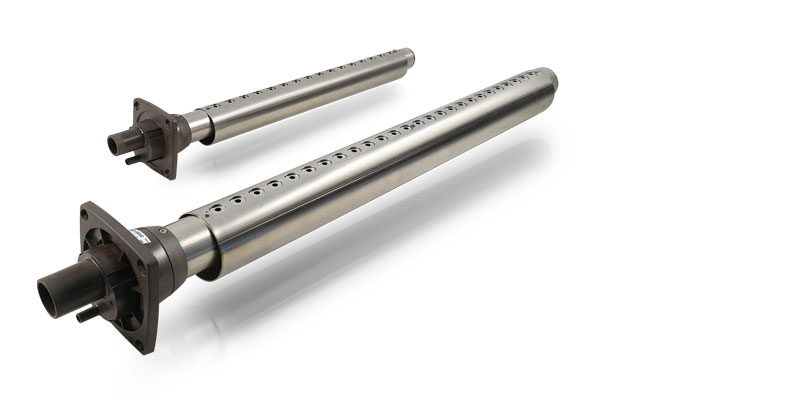

AHU - High-efficiency steam distributors
DP******RH
Obecné charakteristiky
These new steam distributors complete the current product range, thus providing a response to all customer needs, also in terms of energy savings.
The air cushion, acting as an insulator between the steam pipe and the outer jacket, reduces heat exchange between the hot steam inside the distributor and the lower-temperature air in the duct/AHU: this reduces condensation by at least 20%.
Just like in the other versions, excellent steam distribution is ensured by the modular construction, making it possible to virtually cover all duct/AHU widths and exploit as much air flow as possible.
The lengths range from 350 mm to 2050 mm, in 30 mm or 40 mm diameters.
